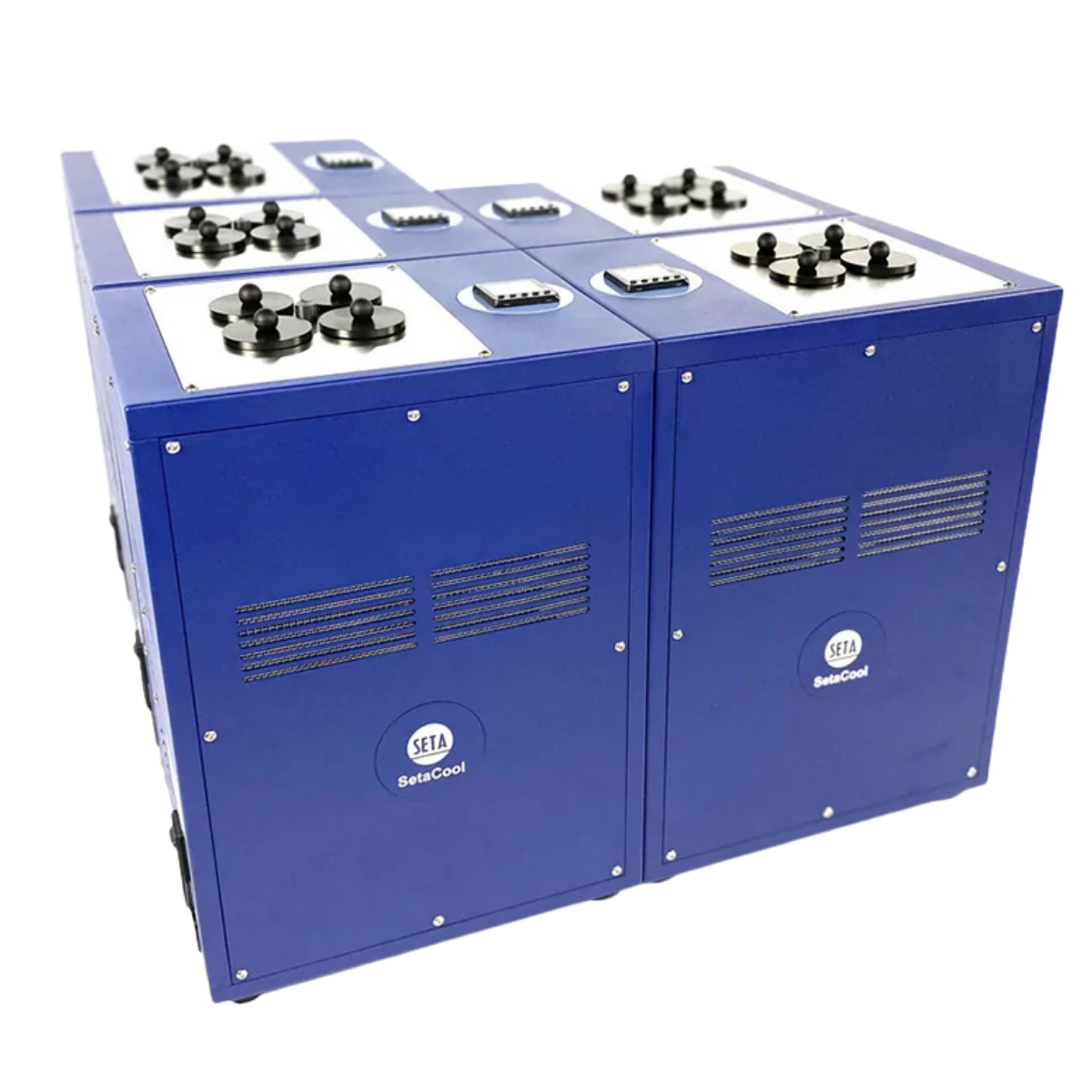

SetaCool-20 – 94165-0

Methods

ASTM D97 | ASTM D2500 | ASTM D5853 | ASTM D6371

IP 15 | IP 219 | IP 309 | IP 441

The SetaCool-20 is designed to provide fast, accurate and precise determination of Cloud Point, Pour Point and Cold Filter Plugging Point of petroleum products, diesel and cooling fuels to -78 °C.

Five independent units, each with four test jackets allows for easier maintenance and servicing. The instrument features a built in cooling system and dry block bath which means no external cooling medium is required, whilst a built in heated top plate prevents ice formation.

A state of the art cooling system eliminates the use of compressors and HFC (greenhouse gas) or flammable refrigerants, providing a safe and environmentally sustainable solution.

Description

Features

Ambient to -78 °C
Temperature stability +/- 0.2 °C or better
Built in cooling
5 independent units x 4 test jackets
Low power consumption

Details

The SetaCool-20 is operated via a simple to use digital controller and consists of a dry block bath with five units x four test jackets. The temperature is set and sample is cooled as specified by the test method. A thermometer well is used to verify the bath temperature is correct. Test results are observed as specified by the test method.

For safety, the SetaCool-20 consists of a heated top plate to prevent condensation and ice forming when the bath is cooling.

Number of test jacket	4 places x 5 units
Cooling temperature range	Adjustable between Ambient to -78 with PID control
Temperature stability	+/- 0.2 or bettwe
Temperature display resolution	1 decimal place
Power	100 V to 240 Vac 50/60 Hz
Size (HxWxD)	Individual unit: 45 x 32 x 24.9 cm
Weight	Individual unit: 19.4 kg
CCCN Code	Tariff 90262020
